ICC Voice Patch Panel, UL Listed, Rackmount 6P6C 24 Port 1U 19-Inch Telephone Network Patch Panel with Rear UTP USOC Wiring 110 IDC Terminal Blocks for PBX and Business Phone Systems, Black

ICC Voice Patch Panel, UL Listed, Rackmount 6P6C 24 Port 1U 19-Inch Telephone Network Patch Panel with Rear UTP USOC Wiring 110 IDC Terminal Blocks for PBX and Business Phone Systems, Black

$44.22 USD
$44.22 USD
Sale Sold out
Shipping calculated at checkout.

Overview

  • Brand : ICC
  • Connector Type : RJ45
  • Cable Type : Component, Ethernet
  • Compatible Devices : Business Phone Systems

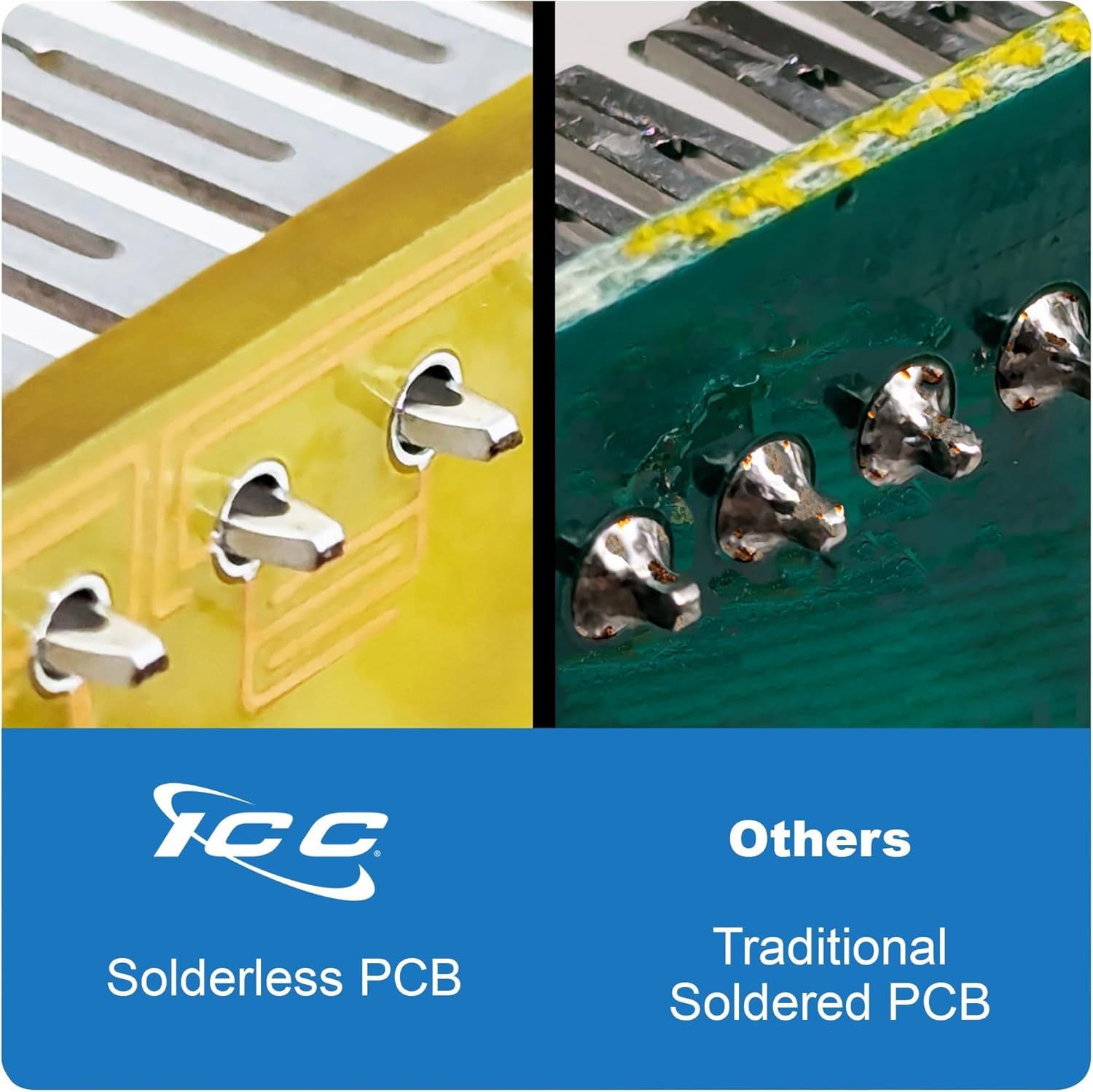

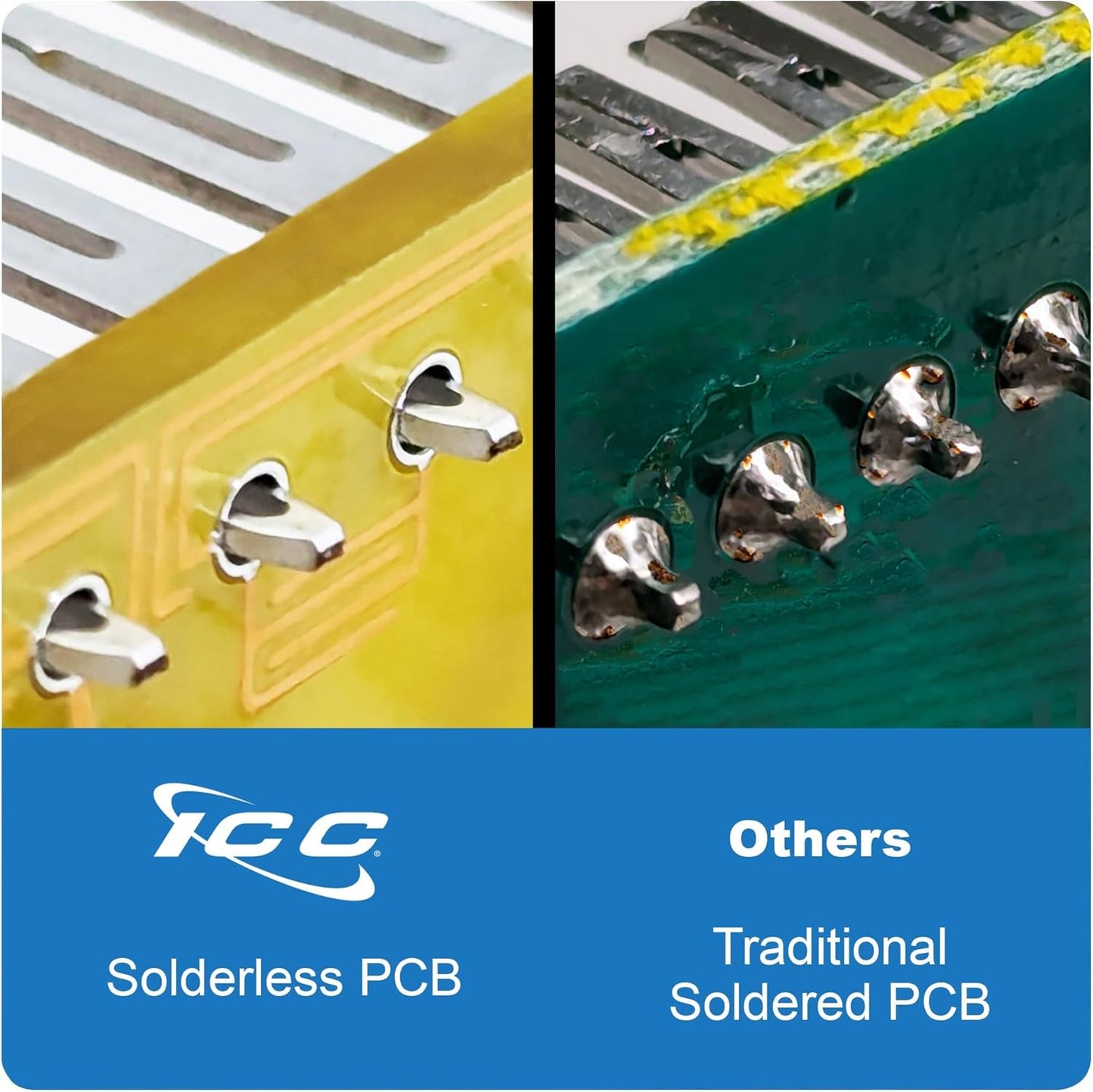

  • Special Feature : Solderless PCB to prevent intermittent connections caused by punch-down termination.

About this item

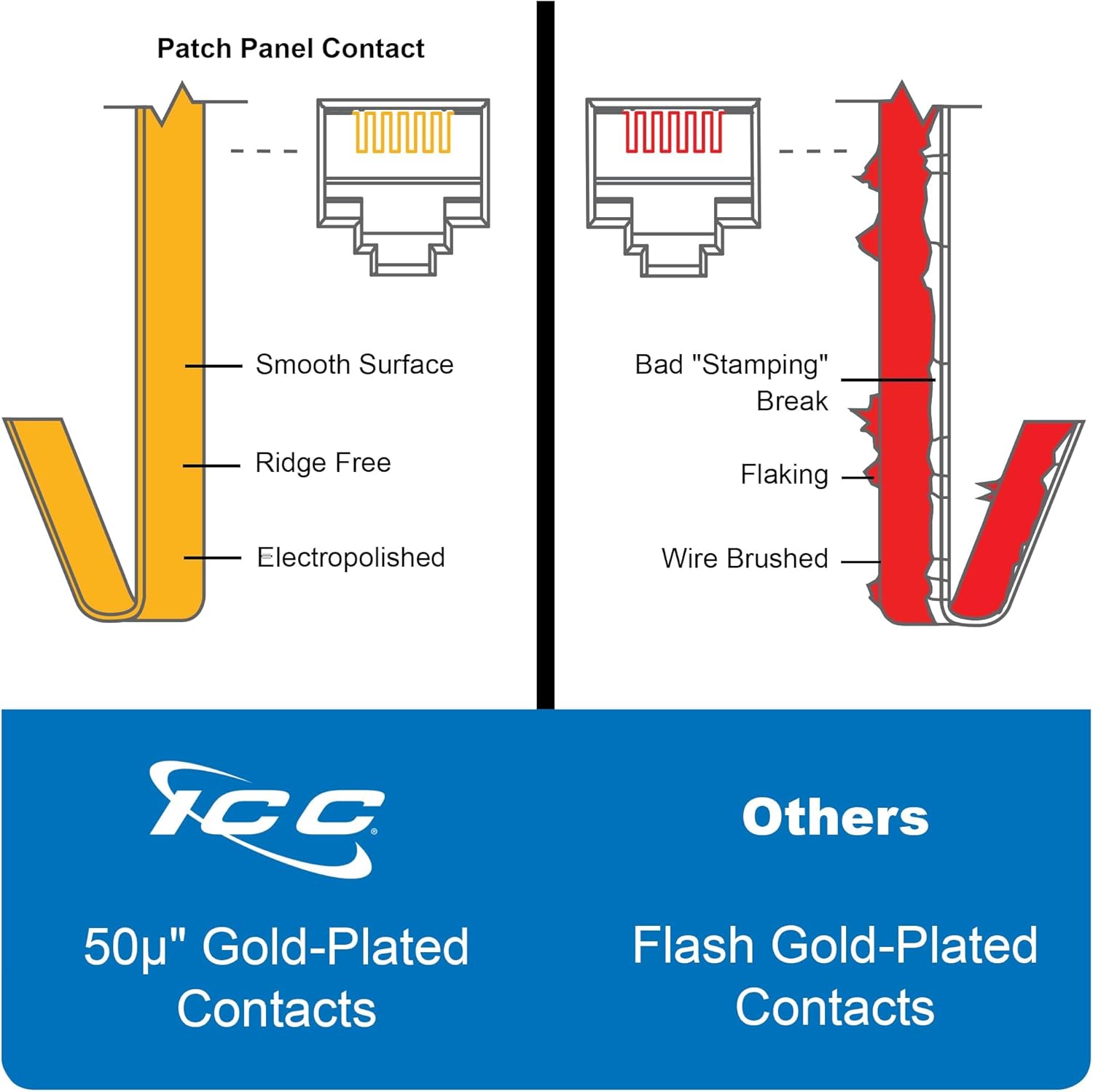

  • ENHANCED VOICE-GRADE NETWORK: ICC's Voice Patch Panels are engineered with 50 micro-inch gold-plated, high-retention 6-Position 6-Conductor contacts, supporting up to 750 plug-to-jack mating cycles, ensuring efficient operation in business phone systems and complex voice network environments.
  • EFFICIENT INSTALLATION: Featuring 110 IDC termination for reduced installation time, with numbered ports and color-coded 6-wire UTP / USOC wiring diagrams for quick reference.
  • DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing is constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) with durable phosphor bronze spring wire and 110 connectors plated with 100 micro-inches of nickel alloy. UL listed for fire safety compliance and TAA compliant.
  • SUPERIOR SIGNAL QUALITY: Tested to meet or exceed TIA CAT 3 performance standards, delivering reliable and clear voice communication.
  • EFFICIENT INSTALLATION AND DURABLE MATERIALS: Constructed with 16-gauge cold-rolled steel (16 GA CRS), this fixed patch panel fits standard 19" EIA racks and cabinets, occupying 1U (1.75") of rack space.
