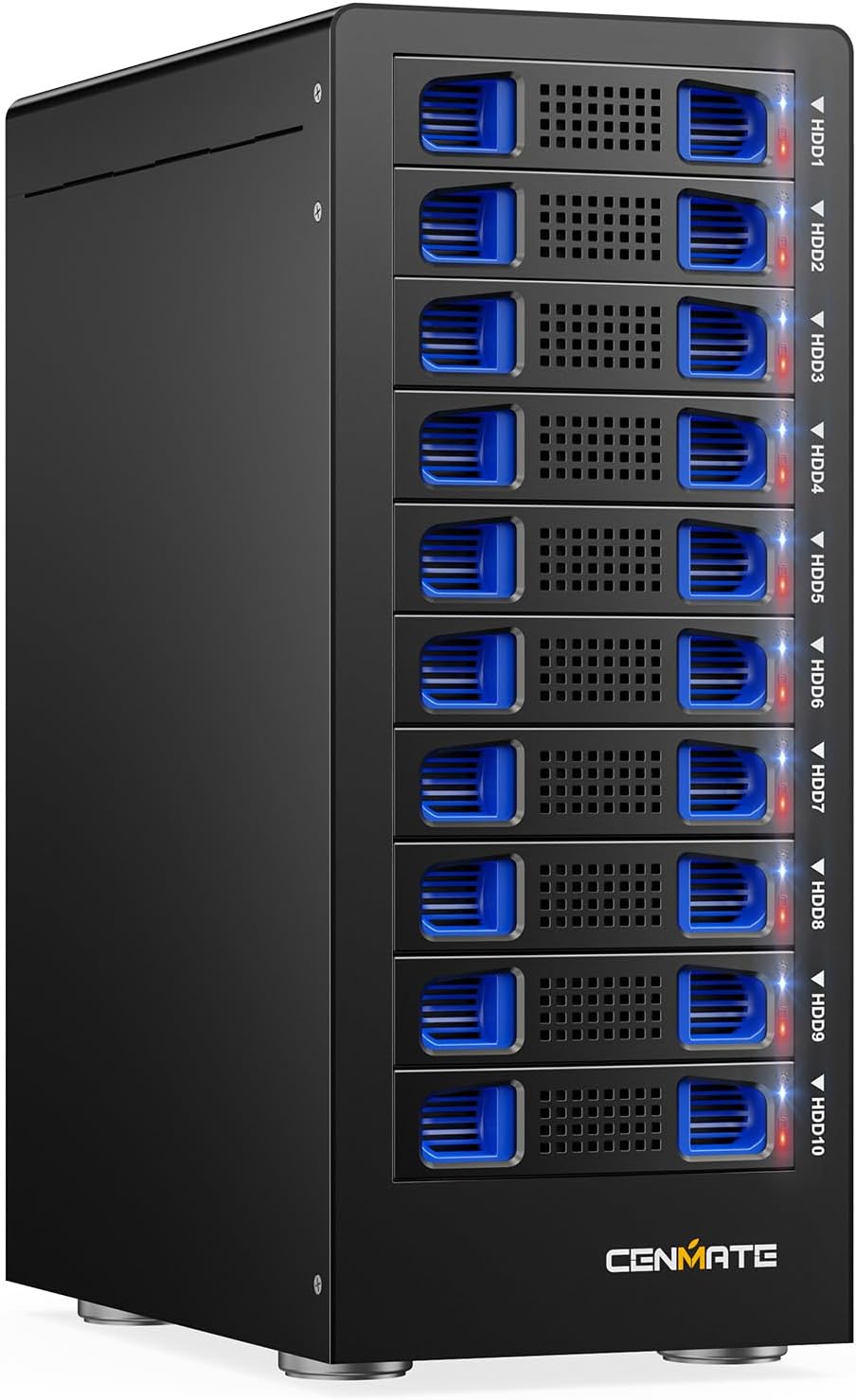

10 Bay Hard Drive RAID Enclosure with Cooling Fan for 2.5/3.5" SATA HDD/SSD with USB A/C 3.0＋eSATA Cable, 3.5 Hard Drive Enclosure Supports 160TB Capacity, 8 RAID Modes, DAS(NO NAS)

Overview

• Hardware Interface : USB 3.0, eSATA
• Brand : cenmate
• Color : Black
• Product Dimensions : 10.7"L x 5.9"W x 14.2"H
• Hardware Platform : Windows Mac Linux

About this item

• !!!NOTE:When the 10-bay enclosure being used, there is at least one hard drive must be inserted into HDD1-HDD5, same goes for HDD6-HDD10, 2 HDDs is a minimun quantity to be inserted.Please read the instructions carefully before trying!!!Be sure to save a good backup of your data before setting up RAID, which will format your hard drive after setting up RAID!!!!!!
• NOTE: When using this product, please first confirm that the hard drive loaded into this product is normal, otherwise it will lead to not out of the drive, such as loading more than one hard drive, it will only show one, can not confirm which one is bad, please load a hard drive, power on, out of the drive a, confirm that it is normal, turn off, and then load the second, in the power on, out of the drive two, to confirm that it is normal, and so on, one by one to load, until you find the The problematic hard drive. For example, if there is a problem with one of the 10 hard drives, only one drive will come out.
• 【Reliable External Storage System for Individuals】The 3.5 hard drive enclosure supports 2.5/3.5inches HDD and SSD , max capacity up to 160TB( 20TB for each hard drive), Not compatible with WD 20TB hard drives, but supports Seagate 20TB hard drives.it's a ideal external hard drive enclosure for personal or enterprise using.Save space on your desktop or laptop.

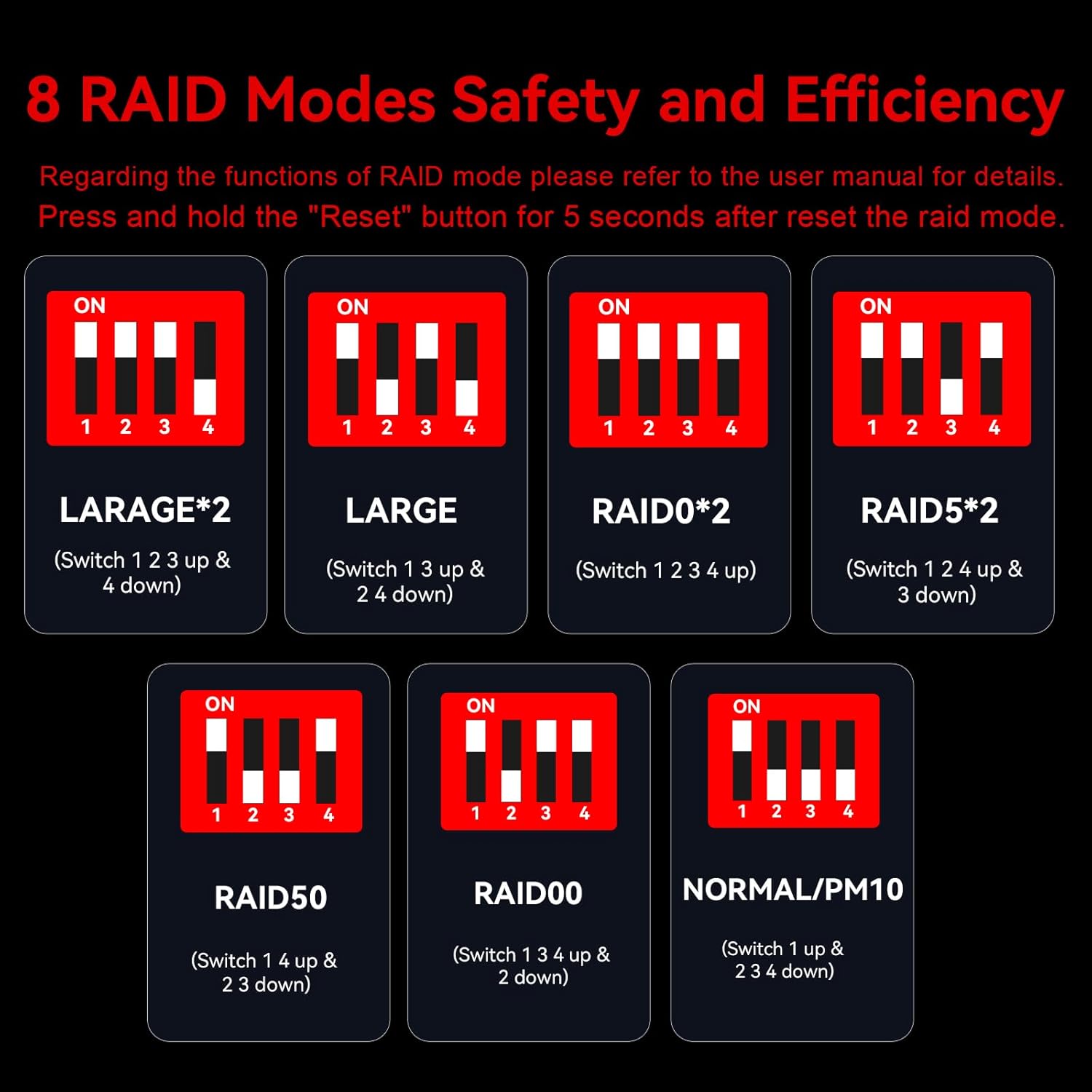

• 【8 Raid Modes】This external raid enclosure supports CLONE, LARGE/ LARGE*2, NORMAL, RAID0*2, RAID5*2, RAID50, RAID00. NOTE:When replacing RAID, you need to go back to NORMAL/PM10 and set the desired RAID mode.Designing RAID may result in data loss. !!!Raid Mode Switching Method!!! Disconnect the power, use a screwdriver, toggle the paddle to the corresponding mode, press and hold the reset button, turn on the power, hold reset for ten seconds, the raid mode will be successfully switched.
• 【No heat】The 10 bay hard drive reader built in Aluminum-Alloy materials and two 2.7 inch Fans.Maximize the security of your data. NOTE：Fan noise is around 40-50 decibels, not recommended if you are very sensitive to noise.
• 【Up to 5Gbps】This 10 bay enclosure equips with JMS567+JMB391+JMB393 chip and USB 3.0 output interface, Max 5Gbps under UASP control.
• 【Stable power supply】Equipped with DC 12V power adapter to provide stability for high-speed transmission.
• 【Wide Compatibility, Plug and Play】Equipped with USB A/C 3.0+eSATA Cable Cable.Compatible with Windows 7 and above, Mac 9.1 and above, Linux.Plug and play, no fuss, no muss.
• 【Quality Assurance】Cenmate provides technical support.If you have any questions about the product, please don't hesitate to contact us, reply and solve your problem within 24 hours.
